Festo
8063459

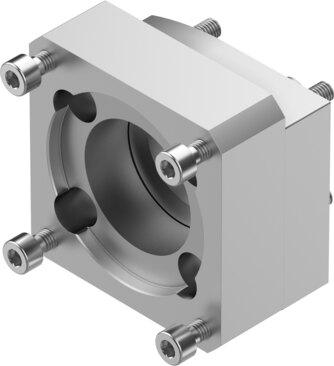

Axial kit EAMM-A-L38-60PA
The Festo part number 8063459 is an industrial component featuring a nominal length of 35.9 mm, an actuator interface code of L38, and a motor input interface code of 60PA with a transferable torque of 4.4 Nm. This RoHS-compliant unit supports a maximum rotational speed of 8000 rpm, a mass moment of inertia of 3.5 kgmm², and an IP40 degree of protection while operating within ambient temperatures of -10 °C to 60 °C and relative air humidity up to 95%. It adheres to VDMA24364-B2-L LABS conformity, weighs 363 g, accommodates any mounting position, and maintains storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063459
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063459.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 35.9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.5 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 363 g
- Interface code, actuator
- L38
- Interface code, motor in
- 60PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063459. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
