Festo
8063467

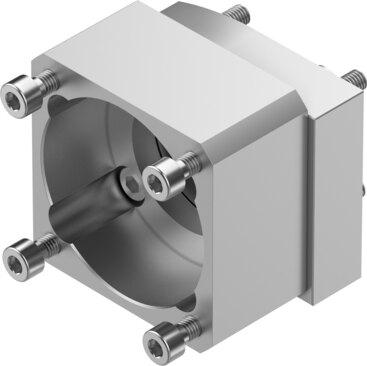

Axial kit EAMM-A-L38-56GA
The Festo 8063467 is an industrial component featuring an actuator interface code of L38 and a motor-in interface code of 56GA with a transferable torque of 4.4 Nm and a maximum rotational speed of 8000 rpm. This unit has a nominal length of 44.9 mm, a mass moment of inertia of 3.5 kgmm², a product weight of 336 g, and an IP40 degree of protection supporting any mounting position. Compliant with RoHS materials notes and VDMA24364-B2-L LABS conformity, the hardware operates within ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity ranging from 0 to 95%. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063467
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063467.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 44.9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 3.5 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 336 g
- Interface code, actuator
- L38
- Interface code, motor in
- 56GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063467. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
