Festo
8063471

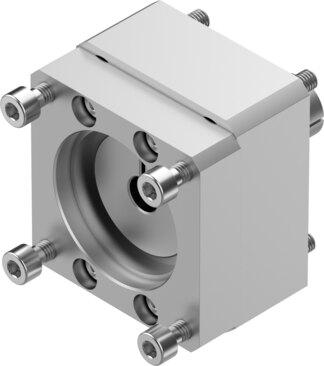

Axial kit EAMM-A-L48-55A
The Festo industrial component, part number 8063471, features a nominal length of 37.3 mm, a mass moment of inertia of 14.5 kgmm², and a transferable torque of 12.5 Nm with a maximum rotational speed of 8000 rpm. Designed with actuator interface code L48 and motor input interface code 55A, the 482 g unit operates in ambient temperatures from -10 °C to 60 °C, supports 0 to 95% relative air humidity, and provides an IP40 degree of protection in any mounting position. This RoHS-compliant part adheres to VDMA24364-B2-L LABS conformity and is rated for storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 37.3 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 482 g
- Interface code, actuator
- L48
- Interface code, motor in
- 55A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063471. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
