Festo
8063487

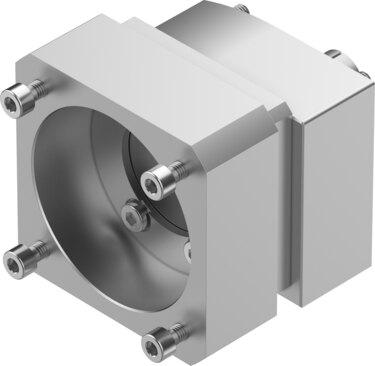

Axial kit EAMM-A-L48-72GA
The Festo 8063487 industrial component features an actuator interface code of L48 and a motor input interface code of 72GA with a transferable torque of 12.5 Nm. This RoHS-compliant unit weighs 707 g, has a mass moment of inertia of 14.5 kgmm², and operates at a maximum rotational speed of 8000 rpm in any mounting position. Rated to IP40 protection, it functions within ambient temperatures from -10 °C to 60 °C, relative air humidity levels of 0 to 95 percent, and adheres to VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063487
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063487.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 65.3 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 707 g
- Interface code, actuator
- L48
- Interface code, motor in
- 72GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063487. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
