Festo
8063502

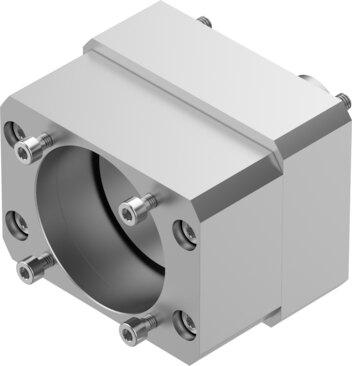

Axial kit EAMM-A-L62-68GA
The Festo 8063502 industrial component features a nominal length of 69.9 mm, a mass moment of inertia of 151 kgmm², and a transferable torque of 47 Nm with a maximum rotational speed of 5500 rpm. Constructed with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, this IP40-rated unit supports an actuator interface code of L62, a motor input interface code of 68GA, and universal mounting in any position. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 95% relative air humidity while weighing 1420 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063502
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063502.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 69.9 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1420 g
- Interface code, actuator
- L62
- Interface code, motor in
- 68GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063502. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
