Festo
8063507

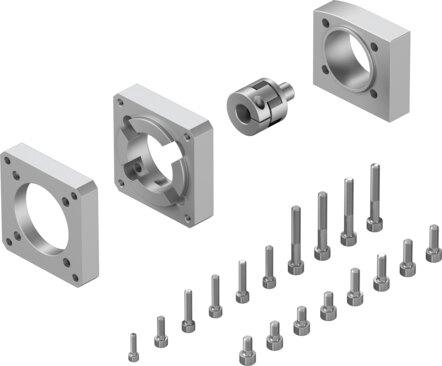

Axial kit EAMM-A-L62-120G
This Festo industrial component, part number 8063507, features a nominal length of 76.9 mm, a product weight of 1970 g, and a mass moment of inertia of 151 kgmm². It delivers a transferable torque of 47 Nm at a maximum rotational speed of 5500 rpm while utilizing actuator interface code L62 and motor input interface code 120G. Built with VDMA24364-B2-L LABS conformity and RoHS-compliant materials, the unit provides an IP40 degree of protection and operates in ambient temperatures from -10 °C to 60 °C with any mounting position. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063507
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063507.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 76.9 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1970 g
- Interface code, actuator
- L62
- Interface code, motor in
- 120G
- Note on materials
- RoHS compliant
