Festo
8063510

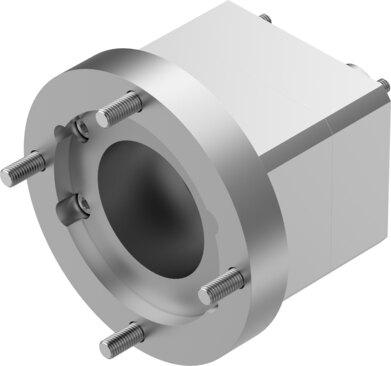

Axial kit EAMM-A-L62-120GC
The Festo industrial component, part number 8063510, features a nominal length of 91.9 mm, a product weight of 1931 g, and RoHS compliant materials with VDMA24364-B2-L LABS conformity. This unit operates at a maximum rotational speed of 5500 rpm with a transferable torque of 47 Nm, a mass moment of inertia of 151 kgmm², and an IP40 degree of protection across an ambient temperature range of -10 °C to 60 °C. Designed with actuator interface code L62 and motor-in interface code 120GC, it supports any mounting position, a storage temperature range of -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063510
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063510.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 91.9 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 47 Nm
- Product weight
- 1931 g
- Interface code, actuator
- L62
- Interface code, motor in
- 120GC
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063510. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
