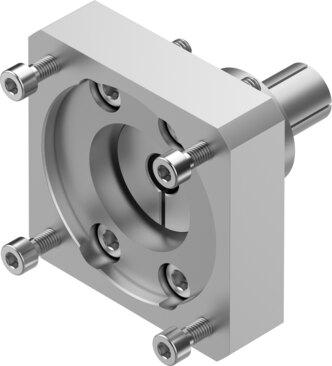

Name: Festo 8063534 Axial kit EAMM-A-M43-70A
Brand: Festo

Axial kit EAMM-A-M43-70A

The Festo part number 8063534 is an industrial component featuring a nominal length of 20.9 mm, a transferable torque of 12.5 Nm, and a maximum rotational speed of 8000 rpm with a mass moment of inertia of 14.5 kgmm². This RoHS-compliant unit incorporates an M43 actuator interface code, a 70A motor-in interface code, and a product weight of 438 g while providing IP40 degree of protection across an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C. Featuring VDMA24364-B2-L LABS conformity, relative air humidity tolerance up to 95%, and suitability for any mounting position, it is specified for operational reliability within defined environmental limits. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8063534
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8063534.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal length: 20.9 mm
Mounting position: Any
Max. rotational speed: 8000 rpm
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 14.5 kgmm²
Transferable torque: 12.5 Nm
Product weight: 438 g
Interface code, actuator: M43
Interface code, motor in: 70A
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8063534. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
