Festo
8063544

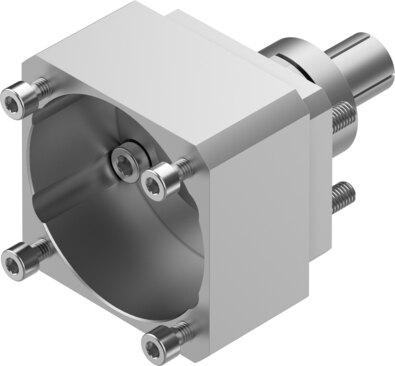

Axial kit EAMM-A-M43-68GA
The Festo 8063544 industrial component features a nominal length of 45.9 mm, a product weight of 444 g, and a mass moment of inertia of 14.5 kgmm², utilizing an M43 actuator interface code and a 68GA motor input interface code. This RoHS-compliant unit achieves a transferable torque of 12.5 Nm at a maximum rotational speed of 8000 rpm, while providing an IP40 degree of protection and VDMA24364-B2-L LABS conformity for installation in any mounting position. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and relative air humidity levels ranging from 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063544
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063544.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 45.9 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 444 g
- Interface code, actuator
- M43
- Interface code, motor in
- 68GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063544. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
