Festo
8063547

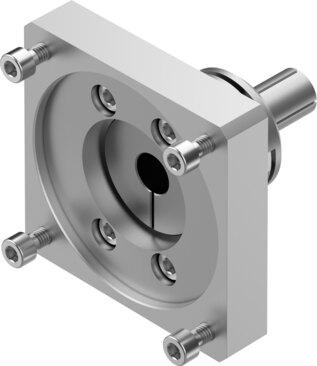

Axial kit EAMM-A-M48-88A
The Festo industrial component, part number 8063547, features a nominal length of 21.5 mm, a transferable torque of 21 Nm, and supports a maximum rotational speed of 6000 rpm with a mass moment of inertia of 39 kgmm². Designed with an M48 actuator interface code, an 88A motor-in interface code, and an IP40 degree of protection, the unit weighs 620 g and complies with VDMA24364-B2-L LABS conformity and RoHS material regulations. It operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and relative air humidity levels between 0 and 95% in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 21.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 620 g
- Interface code, actuator
- M48
- Interface code, motor in
- 88A
- Note on materials
- RoHS compliant
