Festo
8063553

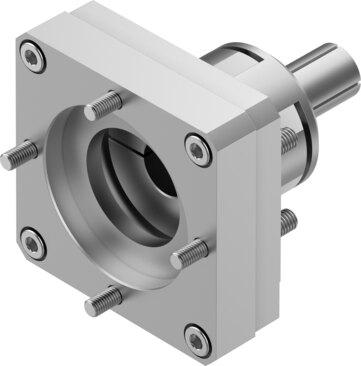

Axial kit EAMM-A-M48-70GA
This Festo industrial component, part number 8063553, features a nominal length of 27.5 mm, an actuator interface code of M48, and a motor input interface code of 70GA. It delivers a transferable torque of 17 Nm with a maximum rotational speed of 6000 rpm, a mass moment of inertia of 39 kgmm², and a total product weight of 596 g while complying with RoHS material standards and VDMA24364-B2-L LABS conformity. Designed for any mounting position, the unit operates in ambient temperatures between -10 °C and 60 °C, relative air humidity from 0 to 95%, and an IP40 degree of protection. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063553
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063553.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 27.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 596 g
- Interface code, actuator
- M48
- Interface code, motor in
- 70GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063553. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
