Festo
8063563

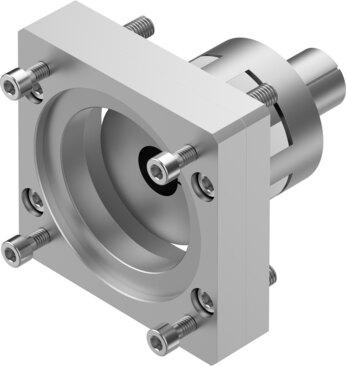

Axial kit EAMM-A-M80-84AA
The Festo 8063563 industrial component features a nominal length of 27 mm, a product weight of 1113 g, and a mass moment of inertia of 151 kgmm². It accommodates an M80 actuator interface code, an 84AA motor-in interface code, and a transferable torque of 60 Nm up to a maximum rotational speed of 5500 rpm in any mounting position. Operating reliably within an ambient temperature range of -10 °C to 60 °C, relative air humidity from 0 to 95%, and an IP40 degree of protection, the unit complies with RoHS and VDMA24364-B2-L LABS conformity standards. Submit your exact part number, quantity, and application requirements for a quote on this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063563
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063563.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 27 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 1113 g
- Interface code, actuator
- M80
- Interface code, motor in
- 84AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063563. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
