Festo
8063569

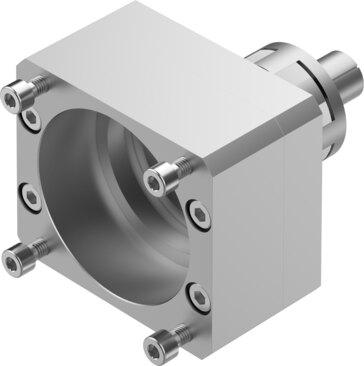

Axial kit EAMM-A-M80-115GA
The Festo 8063569 industrial component features a nominal length of 67 mm, an M80 actuator interface code, and a 115GA motor-in interface code with a transferable torque of 60 Nm and a maximum rotational speed of 5500 rpm. Built with a mass moment of inertia of 151 kgmm² and a product weight of 1873 g, this RoHS-compliant unit operates within an ambient temperature range of -10 °C to 60 °C, supports an IP40 degree of protection, and meets VDMA24364-B2-L LABS conformity. It accommodates any mounting position, a storage temperature range of -25 °C to 60 °C, and a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063569
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063569.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 67 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 151 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 1873 g
- Interface code, actuator
- M80
- Interface code, motor in
- 115GA
- Note on materials
- RoHS compliant
