Festo
8063591

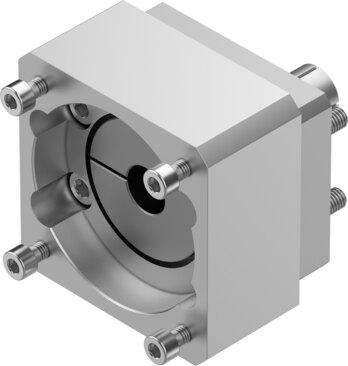

Axial kit EAMM-A-N48-70AA
This Festo industrial component, part number 8063591, features a nominal length of 48.5 mm, a product weight of 653 g, and an IP40 degree of protection with RoHS-compliant materials. The unit accommodates an actuator interface code N48 and motor-in interface codes 70AA or 70AB, delivering a transferable torque of 21 Nm at a maximum rotational speed of 6000 rpm and a mass moment of inertia of 39 kgmm². Designed for any mounting position, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063591
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063591.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 48.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 653 g
- Interface code, actuator
- N48
- Interface code, motor in
- 70AA | 70AB
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063591. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
