Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

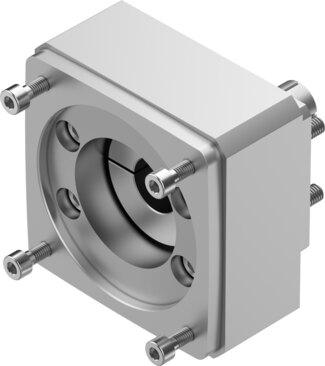

Reference imageConfirm configuration by manufacturer part number.
Festo
8063592
Axial kit EAMM-A-N48-80P
Engineered by Festo with part number 8063592, this industrial component features a nominal length of 54 mm, a mass moment of inertia of 45 kgmm², and a transferable torque of 17 Nm. It accommodates a maximum rotational speed of 6000 rpm, integrates an actuator interface code of N48 alongside motor in interface codes 80P, 80PA, and 80RA, and weighs 620 g with RoHS compliance and VDMA24364-B2-L LABS conformity. The assembly functions in any mounting position across an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C, tolerates 0 to 95% relative air humidity, and maintains an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063592
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063592.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 54 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 45 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 620 g
- Interface code, actuator
- N48
- Interface code, motor in
- 80P | 80PA | 80RA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063592. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
