Festo
8063598

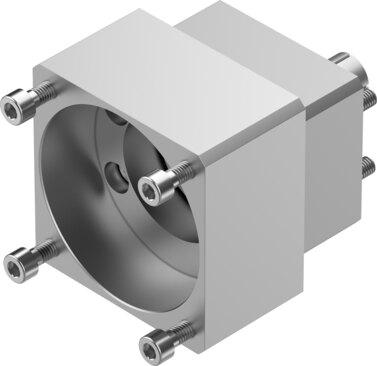

Axial kit EAMM-A-N48-75GA
The Festo 8063598 is an industrial component featuring an actuator interface code of N48 and a motor input interface code of 75GA with a nominal length of 74.5 mm and a product weight of 848 g. This RoHS compliant part delivers a transferable torque of 17 Nm at a maximum rotational speed of 6000 rpm, exhibiting a mass moment of inertia of 39 kgmm² and VDMA24364-B2-L LABS conformity. Rated to IP40 protection, it functions within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity levels from 0 to 95% in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063598
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063598.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 74.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 848 g
- Interface code, actuator
- N48
- Interface code, motor in
- 75GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063598. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
