Festo
8063600

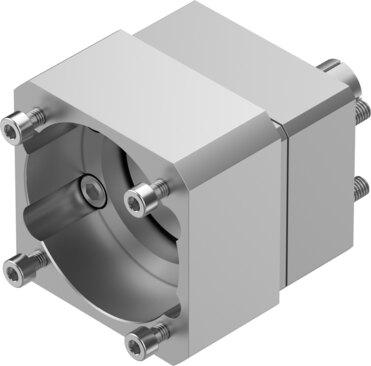

Axial kit EAMM-A-N48-68GA
The Festo industrial component, part number 8063600, features a nominal length of 66.5 mm, a mass moment of inertia of 39 kgmm², and a transferable torque of 17 Nm with a maximum rotational speed of 6000 rpm. This unit weighs 688 g, includes actuator interface code N48 and motor input interface code 68GA, and adheres to VDMA24364-B2-L LABS conformity with RoHS-compliant materials. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, a relative air humidity of 0 to 95%, provides IP40 degree of protection, and supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063600
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063600.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 66.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 688 g
- Interface code, actuator
- N48
- Interface code, motor in
- 68GA
- Note on materials
- RoHS compliant
