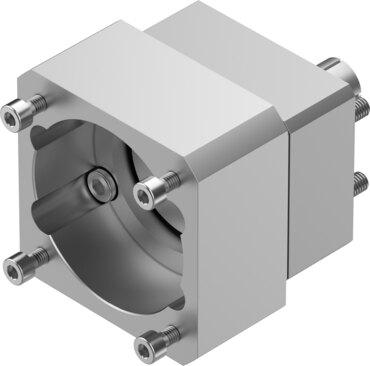

Reference imageConfirm configuration by manufacturer part number.
Festo
8063601
Axial kit EAMM-A-N48-72GA
The Festo industrial component, designated by part number 8063601, features a nominal length of 66.5 mm, a product weight of 739 g, and a mass moment of inertia of 39 kgmm². This unit supports an actuator interface code of N48, a motor input interface code of 72GA, a transferable torque of 17 Nm, and a maximum rotational speed of 6000 rpm within any mounting position. Compliant with RoHS materials standards and VDMA24364-B2-L LABS conformity, the hardware operates at ambient temperatures between -10 °C and 60 °C, storage temperatures from -25 °C to 60 °C, relative air humidity levels of 0 to 95%, and an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063601
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063601.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 66.5 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 739 g
- Interface code, actuator
- N48
- Interface code, motor in
- 72GA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063601. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
