Festo
8063800

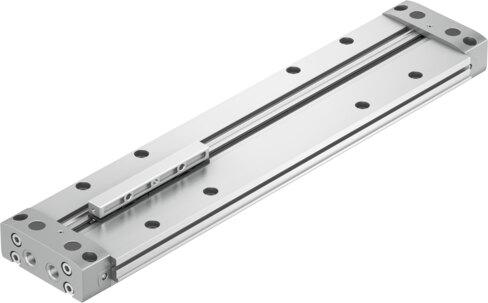

Linear actuator DLGF-...-25- -PPSA
The Festo part number 8063800 is a double-acting industrial component featuring a 25 mm piston diameter, an adjustable stroke length from 50 mm to 1000 mm, and a basic guide with recirculating ball bearings utilizing a positive locking driver principle. Operating within a pressure range of 0.15 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:-:-], this unit delivers a theoretical force of 295 N both advancing and retracting at 6 bar. It incorporates self-adjusting pneumatic end-position cushioning with a 9 mm cushioning length, proximity switch position sensing, and an ambient temperature range of 0 °C to 60 °C, alongside ISO 14644-1 cleanroom suitability class 6. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063800
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063800.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm...1000 mm
- Piston diameter
- 25 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide | Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Variants
- With mounting holes | Without mounting holes
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 9 mm
- Theoretical force at 6 bar, retracting
- 295 N
- Theoretical force at 6 bar, advancing
- 295 N
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant | Free of copper
- Cover material
- Die-cast aluminum, coated
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Anodized aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063800. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
