Festo
8063802

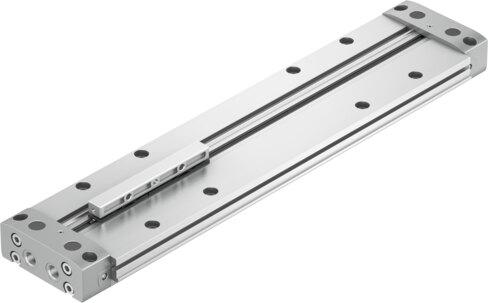

Linear actuator DLGF-...-40- -PPSA
The Festo 8063802 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 50 mm to 1000 mm, and self-adjusting pneumatic end-position cushioning with a 12.9 mm cushioning length. Operating on compressed air according to ISO 8573-1:2010 [7:-:-] within a pressure range of 0.15 MPa to 0.8 MPa, this unit delivers a theoretical force of 754 N at 6 bar in both retracting and advancing directions. It incorporates a basic guide with recirculating ball bearings, positive locking driver principle, and position sensing via proximity switch, alongside a Class 6 cleanroom suitability rating per ISO 14644-14. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8063802
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8063802.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm...1000 mm
- Piston diameter
- 40 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Guide
- Basic guide | Recirculating ball bearing
- Driver principle
- Positive locking (slot)
- Position sensing
- Via proximity switch
- Variants
- With mounting holes | Without mounting holes
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 12.9 mm
- Theoretical force at 6 bar, retracting
- 754 N
- Theoretical force at 6 bar, advancing
- 754 N
- Alternative connections
- See product drawing
- Type of mounting
- Direct mounting via through-hole | With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant | Free of copper
- Cover material
- Die-cast aluminum, coated
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Anodized aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8063802. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
