Festo
8065127
Connecting cable NEBC-D8G4-ES-2-N-S-D8G4-ET

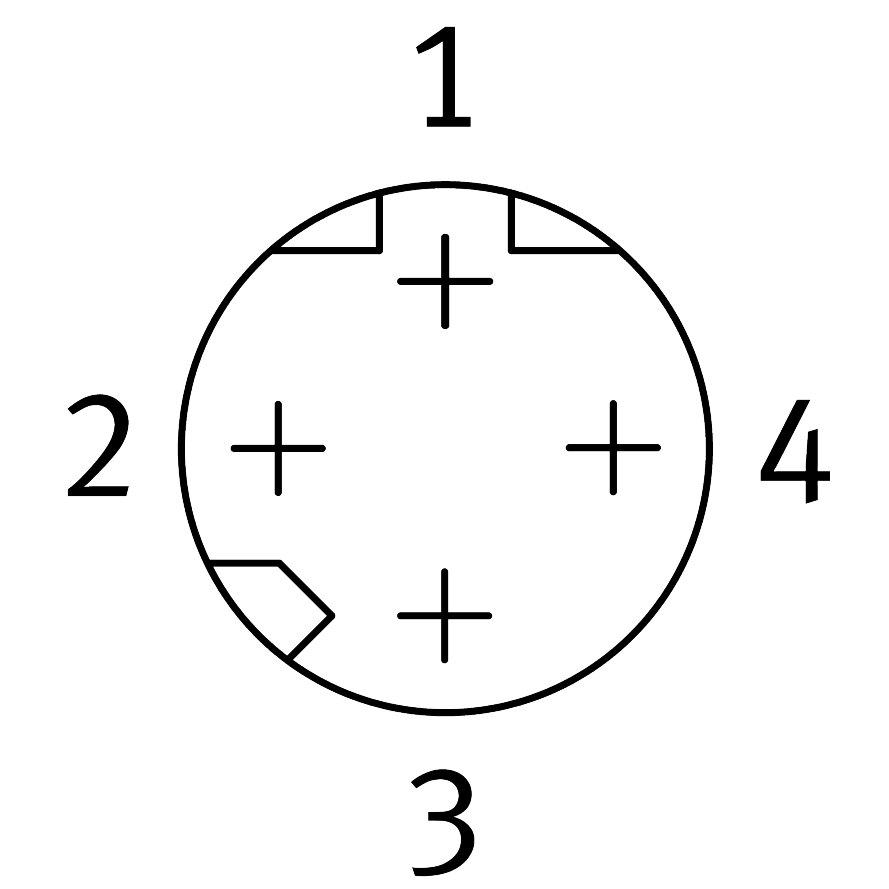

The Festo 8065127 is an industrial component featuring an M8x1, D-coded straight round plug for electrical connection 1 with 4 pins and a screw-type lock with longitudinal knurl, designed to EN 61076-2-114 based on norm. Electrical connection 2 mirrors this control-side specification with a straight round plug, 4 pins, and M8x1, D-coded connection technology under c UL us (OL) certification via UL E474609. Weighing 129 g with a contact durability of 100, this unit operates without a cable holder and is compatible with both rotatable and non-rotatable screw-type locks. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8065127
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8065127.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Certication
- c UL us (OL)
- Certicate issuing authority
- UL E474609
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 129 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...30 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8065127. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
