Festo
8065131
Connecting cable NEBC-D8G4-ES-7.5-N-S-D8G4-ET
The Festo 8065131 is an industrial component featuring an M8x1, D-coded round plug on both connection 1 and connection 2, conforming to EN 61076-2-114 with 4 pins and 4 occupied wires in straight cable outlets. This 445 g unit includes a screw-type lock with longitudinal knurl on the control side that is rotatable and compatible with both rotatable and non-rotatable locking types, maintaining a contact durability rating of 100 cycles without a label holder. It holds a c UL us (OL) certification issued by UL under file E474609. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8065131
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8065131.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Certication
- c UL us (OL)
- Certicate issuing authority
- UL E474609
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 445 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

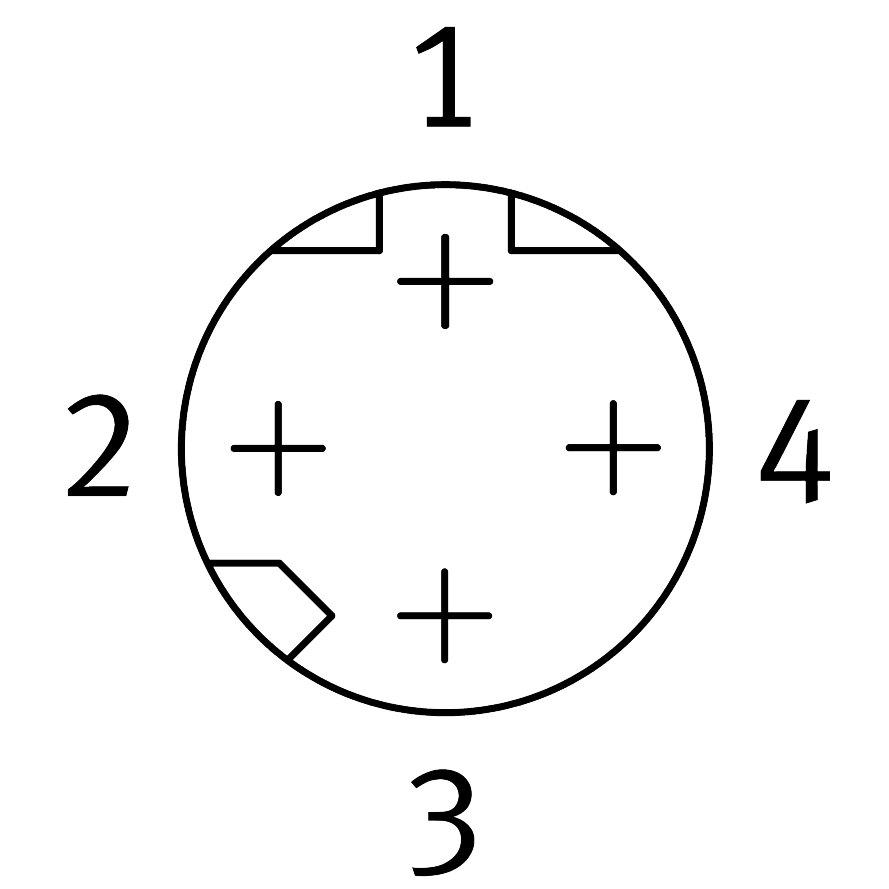

- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...30 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
