Festo
8065133
Connecting cable NEBC-D8G4-ES-10-N-S-D8G4-ET
The Festo part number 8065133 is an industrial component weighing 590 g, manufactured in accordance with the EN 61076-2-114 norm and certified by c UL us (OL) under certificate issuing authority UL E474609. This unit features two straight control-side round plugs with M8x1 D-coded connection technology, each containing four occupied pins and wired without a label holder for 100 contact durability cycles. Electrical connection 1 utilizes a screw-type lock with a longitudinal knurl that is rotatable and compatible with rotatable or non-rotatable screw-type locks. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8065133
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8065133.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-114
- Certication
- c UL us (OL)
- Certicate issuing authority
- UL E474609
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 590 g
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight

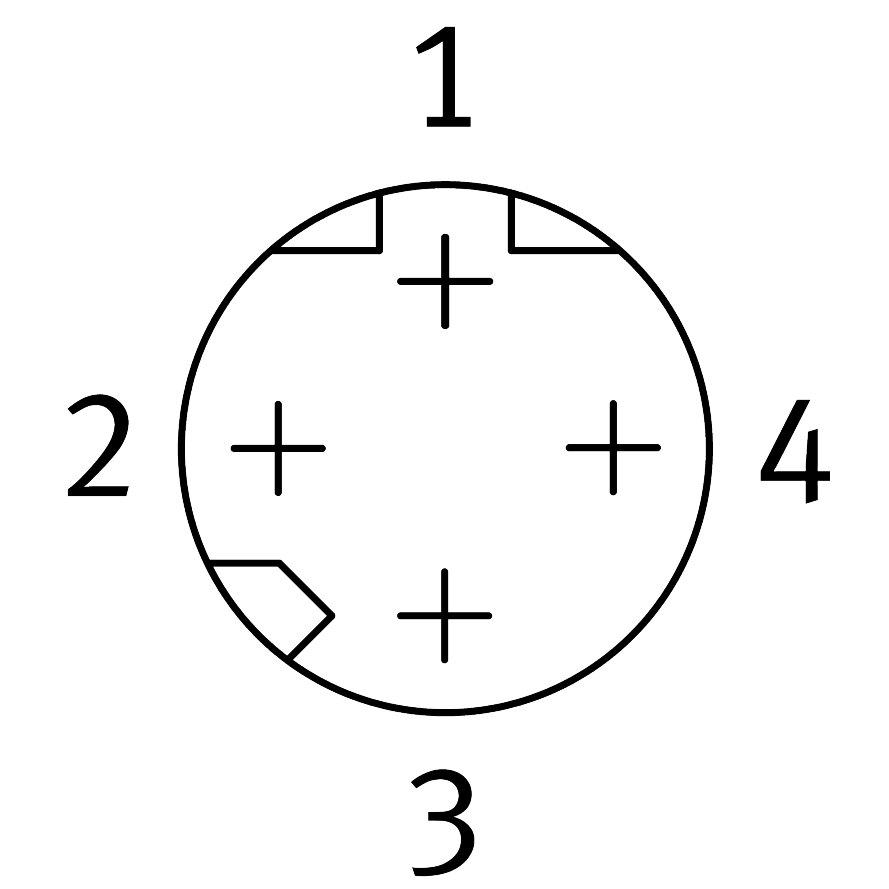

- Electrical connection 1, connection technology
- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1, D-coded as per EN 61076-2-114
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- Electrical connection 2, type of mounting
- Screw-type lock with longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...30 V
- Note on operating voltage range DC
- 0 - 30 V for UL applications
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8065133. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
