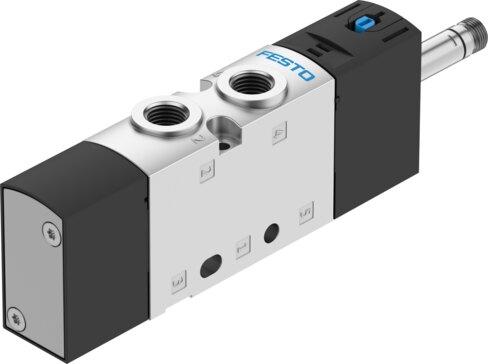

Reference imageConfirm configuration by manufacturer part number.
Festo
8065575
Air solenoid valve VUVS-L20-M52-MZD-N18-F7
The Festo part number 8065575 is a 5/2-way monostable industrial component utilizing a piloted piston gate valve structural design with a soft sealing principle and positive overlap lap. This electrical valve features a 21 mm valve size, a nominal width of 5.7 mm, a normal nominal flow rate of 700 l/min, and 1/8 NPT pneumatic working ports supporting an operating pressure range of -0.9 bar to 10 bar alongside an external pilot air supply port operating between 0.25 MPa and 1 MPa. It includes a mechanical spring reset method, adjustable exhaust air function, reversible flow direction, any mounting position, detenting and non-detenting manual override, and operates via a solenoid coil ordered separately under c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8065575
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8065575.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 700 l/min
- Pneumatic working port
- 1/8 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Nominal width
- 5.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...1 MPa
- Pilot pressure
- 2.5 bar...10 bar
- b-value
- 0.35
- C value
- 2.9 l/sbar
- Switching time off
- 44 ms
- On switching time
- 12 ms
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse on 1 signal
- 2700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8065575. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
