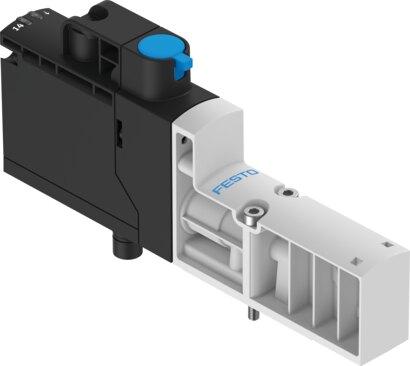

Name: Festo 8066569 Air solenoid valve VSVA-BT-M32CS1-MYE-A2-1T5L-PA
Brand: Festo

Air solenoid valve VSVA-BT-M32CS1-MYE-A2-1T5L-PA

The Festo 8066569 is a 3/2-way closed, monostable industrial component featuring a piloted plate seat structural design with an 18 mm width and soft sealing principle. It delivers a normal nominal flow rate and standard nominal flow rate exhaust air of 125 l/min across an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar). Equipped with internal pilot air supply, negative overlap lap, mechanical and pneumatic spring reset methods, and holding current reduction, this unit provides IP65 protection, 100% duty cycle, and dual LED signal status displays for valve actuation and exhausted status via an integrated pressure switch. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8066569
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8066569.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 125 l/min
Standard nominal ow rate exhaust air: 125 l/min
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring | Pneumatic spring
Degree of protection: IP65
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Self-resetting via electrical control signal
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Negative overlap
Additional functions: Holding current reduction
Signal status display: Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
Switching position sensing: Via pressure switch, exhausted status
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 1200 µs
Nominal pick-up current per solenoid coil: 60 mA up to 35 ms
Nominal operating voltage DC: 24 V
Nominal current with current reduction: 11 mA after 35 ms
Coil characteristics: 24 V DC: 1.6 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8066569. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
