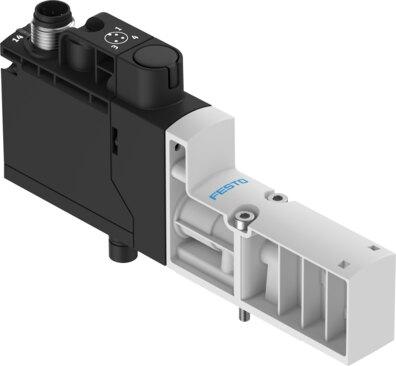

Name: Festo 8066574 Air solenoid valve VSVA-BT-M32CS2-MS-A2-1T1L-PZ
Brand: Festo

Air solenoid valve VSVA-BT-M32CS2-MS-A2-1T1L-PZ

The Festo 8066574 is an 18 mm electrical industrial component featuring a 3/2-way, closed, monostable valve function with a piloted type of control and internal pilot air supply port. It delivers a normal nominal flow rate and standard nominal flow rate exhaust air of 125 l/min across an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) utilizing a plate seat structural design with soft sealing. Equipped with a 100% duty cycle, mechanical and pneumatic spring reset methods, negative overlap lap, and holding current reduction, it features IP65 protection, yellow and green LED signal status displays, and switching position sensing via an exhausted status pressure switch in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8066574
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8066574.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 125 l/min
Standard nominal ow rate exhaust air: 125 l/min
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Plate seat
Reset method: Mechanical spring | Pneumatic spring
Degree of protection: IP65
Sealing principle: Soft
Mounting position: Any
Manual override: None
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Negative overlap
Additional functions: Holding current reduction
Signal status display: Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
Switching position sensing: Via pressure switch, exhausted status
Duty cycle: 100%
Max. positive test pulse with 0 signal: 2000 µs
Max. negative test pulse on 1 signal: 1200 µs
Nominal pick-up current per solenoid coil: 60 mA up to 35 ms
Nominal operating voltage DC: 24 V
Nominal current with current reduction: 11 mA after 35 ms
Coil characteristics: 24 V DC: 1.6 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
