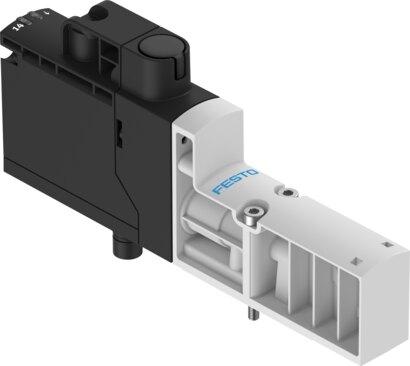

Reference imageConfirm configuration by manufacturer part number.
Festo
8066575
Air solenoid valve VSVA-BT-M32CS2-MS-A2-1T5L-PA
The Festo 8066575 is an 18 mm wide electrical industrial component featuring a 3/2-way closed, monostable valve function with a plate seat structural design and soft sealing principle. Operating at pressures from 0.3 MPa to 1 MPa (3 bar to 10 bar), it delivers a normal nominal flow rate and exhaust air flow rate of 125 l/min through piloted, non-reversible flow control with internal pilot air supply. This IP65-rated unit incorporates mechanical and pneumatic spring reset methods, a negative overlap lap, holding current reduction, and a 100% duty cycle with yellow and green LED signal status displays for valve actuation and exhausted status pressure sensing. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066575
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066575.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 125 l/min
- Standard nominal ow rate exhaust air
- 125 l/min
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring | Pneumatic spring
- Degree of protection
- IP65
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Additional functions
- Holding current reduction
- Signal status display
- Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
- Switching position sensing
- Via pressure switch, exhausted status
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 1200 µs
- Nominal pick-up current per solenoid coil
- 60 mA up to 35 ms
- Nominal operating voltage DC
- 24 V
- Nominal current with current reduction
- 11 mA after 35 ms
- Coil characteristics
- 24 V DC: 1.6 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066575. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
