Festo
8066673
Connecting cable NEBB-M12G5-P-2.5-LE4

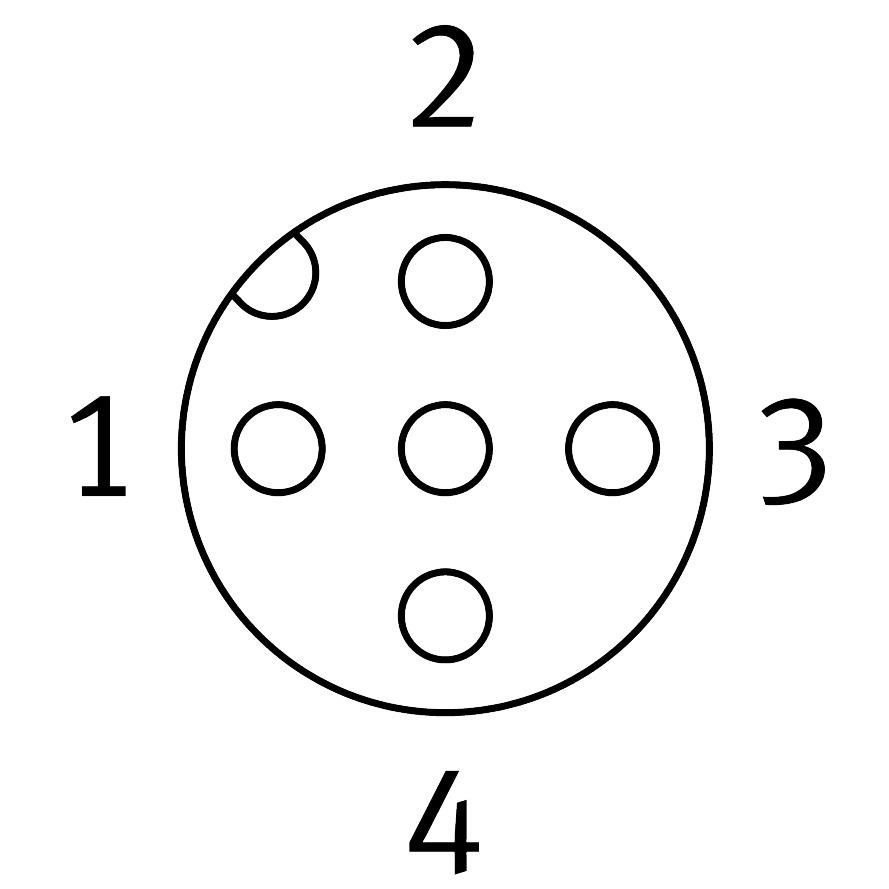

This Festo industrial component, part number 8066673, features a straight M12x1 A-coded 5-pin socket with 4 occupied pins and a screw-type lock with AF 13 on the field device end, connecting to an open-end cable with 4 pins and wires on the control side. The unit operates within a DC and AC voltage range of 0 V to 250 V, a 4 A current rating at 40° C, and a 2.5 kV surge resistance, adhering to EN 60947-5-2 and EN 61076-2-101 standards for wire colors and connection numbers. It includes a cable designation with a label holder and complies with ATEX Zone 2 and Zone 22 explosion prevention and protection guidelines per the certificate. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066673
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066673.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Cable designation
- With label holder
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with AF 13
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable length
- 2.5 m
- Cable characteristic
- for static applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 14 mm
- Cable diameter
- 4.5 mm
- Cable design
- 4 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066673. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
