Name: Festo 8066675 Connecting cable NEBB-M12G5-P-10-LE4
Brand: Festo

Connecting cable NEBB-M12G5-P-10-LE4

This Festo industrial component, part number 8066675, features an M12x1 A-coded straight socket with 5 pins (4 occupied) on the field device end and an open-ended 4-wire cable on the control side, secured via a screw-type lock with an AF 13 mount. It operates within a 0 V to 250 V AC/DC voltage range, supports a 4 A current rating at 40° C, provides 2.5 kV surge resistance, and includes a label holder with wire colors and connection numbers conforming to EN 60947-5-2 and EN 61076-2-101. Certified for ATEX Zone 2 and Zone 22 hazardous locations, this part requires observation of the certificate information for explosion prevention and protection. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8066675
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8066675.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Cable designation: With label holder
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

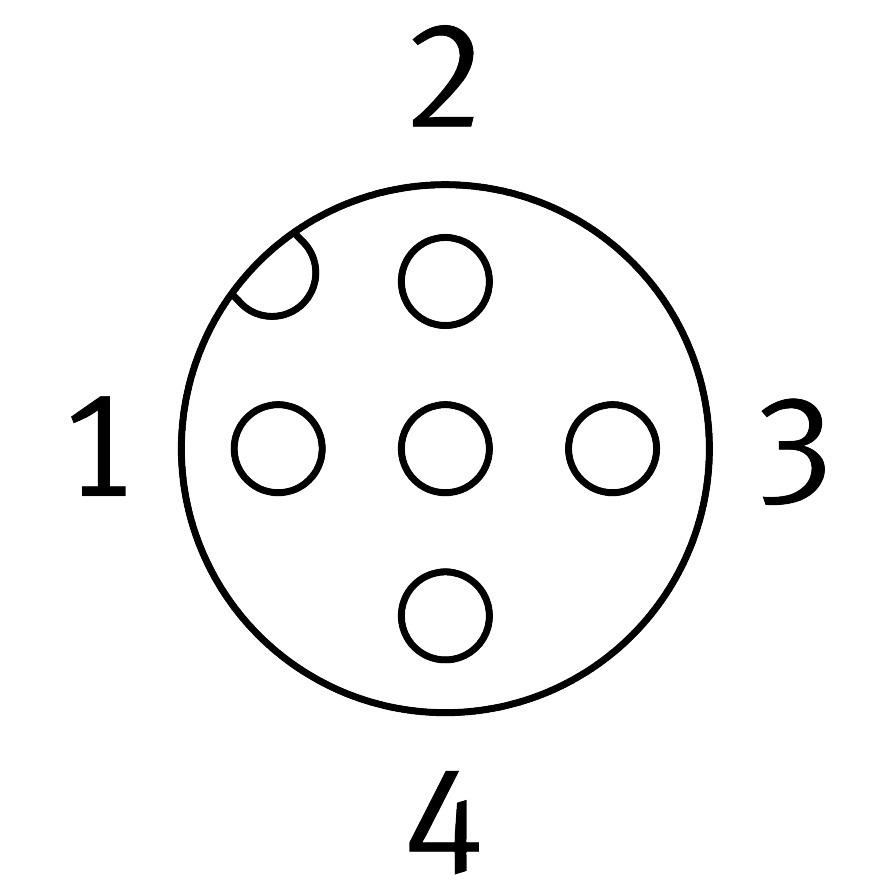

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock with AF 13
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 4
DC operating voltage range: 0 V...250 V
Operating voltage range AC: 0 V...250 V
Current rating at 40° C: 4 A
Surge resistance: 2.5 kV
Cable length: 10 m
Cable characteristic: for static applications
Connector cable test conditions: Test conditions on request
Bending radius, xed cable installation: 14 mm
Cable diameter: 4.5 mm
Cable design: 4 x 0.25 mm²
Nominal conductor cross section: 0.25 mm²

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8066675. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
