Festo
8066683
Connecting cable NEBB-M12W5-P-5-LE4

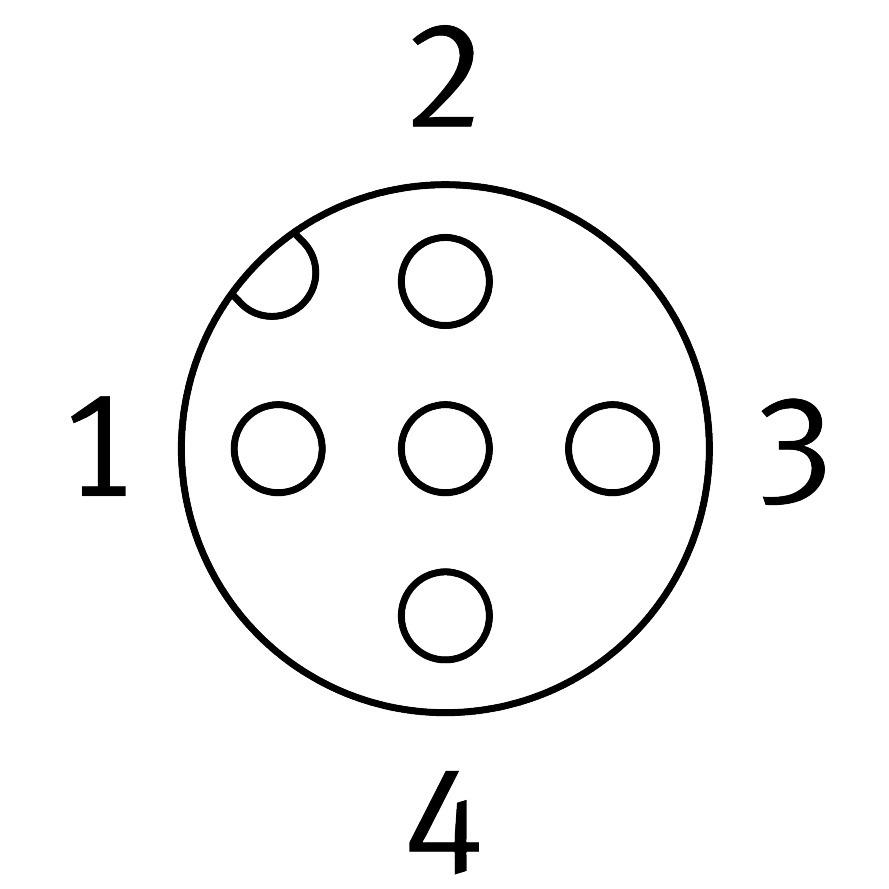

This Festo industrial component, part number 8066683, features an angled M12x1 A-coded socket with five pins (four occupied) on the field device end and an open-ended cable with four pins on the control side, utilizing wire colors and connection numbers conforming to EN 60947-5-2 and EN 61076-2-101 standards. The unit supports an AC and DC operating voltage range of 0 V to 250 V, a current rating of 4 A at 40° C, and a 2.5 kV surge resistance, along with ATEX certification for Zone 2 and Zone 22 hazardous environments. Additional attributes include a screw-type lock with AF 13 mounting and a cable designation with a label holder. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066683
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066683.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Cable designation
- With label holder
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with AF 13
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...250 V
- Operating voltage range AC
- 0 V...250 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 2.5 kV
- Cable length
- 5 m
- Cable characteristic
- for static applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 14 mm
- Cable diameter
- 4.5 mm
- Cable design
- 4 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
