Festo
8066764

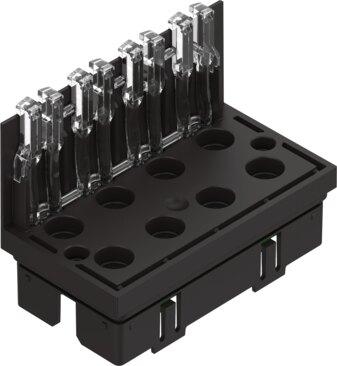

Electronics module VMPA14-FB-EMS-8
The Festo 8066764 is an industrial component featuring diagnostics for pneumatic valve undervoltage, supporting a maximum of 4 valve positions and 8 solenoid coils. Constructed from POM housing material with RoHS compliance, this 30 g part exhibits a CRC corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. It operates with an intrinsic current consumption of 8 mA at operating voltage and 3 mA at load voltage, alongside a nominal pick-up current of 58 mA per solenoid coil up to 24 ms and a reduced current of 9 mA thereafter. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066764
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066764.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diagnostics
- Undervoltage of pneumatic valves
- Max. no. of valve positions
- 4
- Max. no. of solenoid coils
- 8
- Intrinsic current consumption at load voltage
- 3 mA
- Intrinsic current consumption at operating voltage
- 8 mA
- Nominal pick-up current per solenoid coil
- 58 mA up to 24 ms
- Nominal current with current reduction
- 9 mA after 24 ms
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 30 g
- Housing material
- POM
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066764. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
