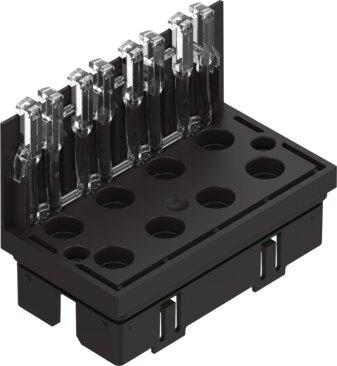

Name: Festo 8066765 Electronics module VMPA14-FB-EMG-8
Brand: Festo

Electronics module VMPA14-FB-EMG-8

The Festo 8066765 is an industrial component housed in POM with a product weight of 30 g, featuring diagnostics for undervoltage of pneumatic valves. It supports a maximum of 4 valve positions and 8 solenoid coils, operating with an intrinsic current consumption of 8 mA at operating voltage and 23 mA at load voltage. Solenoid coil characteristics include a nominal pick-up current of 58 mA up to 24 ms followed by a current reduction to 9 mA, while material compliance is noted as RoHS-compliant alongside VDMA24364-B1/B2-L LABS conformity and a CRC rating of 1 for low installed corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8066765
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8066765.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Diagnostics: Undervoltage of pneumatic valves
Max. no. of valve positions: 4
Max. no. of solenoid coils: 8
Intrinsic current consumption at load voltage: 23 mA
Intrinsic current consumption at operating voltage: 8 mA
Nominal pick-up current per solenoid coil: 58 mA up to 24 ms
Nominal current with current reduction: 9 mA after 24 ms
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 30 g
Housing material: POM
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8066765. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
