Festo
8066767

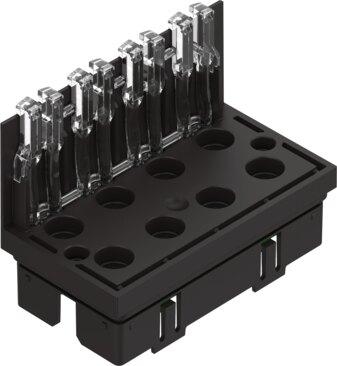

Electronics module VMPA14-FB-EMG-D2-8
The Festo 8066767 industrial component weighs 30 g and features a POM housing with a RoHS-compliant material build, a VDMA24364-B1/B2-L LABS conformity, and a CRC rating of 1 for low corrosion stress when installed. This module supports up to 4 valve positions and 8 solenoid coils, featuring condition monitoring along with diagnostics for wire breaks, short circuits, and undervoltage of pneumatic valves. Electrical parameters include an intrinsic current consumption of 8 mA at operating voltage, 23 mA at load voltage, a nominal pick-up current of 58 mA per solenoid coil up to 24 ms, and a reduced nominal current of 9 mA after 24 ms. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066767
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066767.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diagnostics
- Condition monitoring | Wire break per valve coil | Short circuit of pneumatic valves | Undervoltage of pneumatic valves
- Max. no. of valve positions
- 4
- Max. no. of solenoid coils
- 8
- Intrinsic current consumption at load voltage
- 23 mA
- Intrinsic current consumption at operating voltage
- 8 mA
- Nominal pick-up current per solenoid coil
- 58 mA up to 24 ms
- Nominal current with current reduction
- 9 mA after 24 ms
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 30 g
- Housing material
- POM
- Note on materials
- RoHS compliant
