Festo
8066768

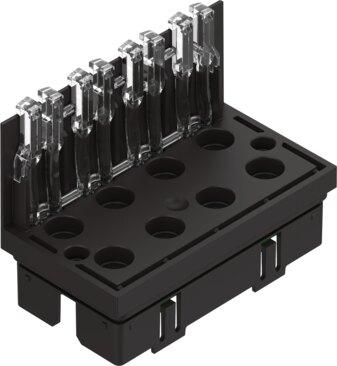

Electronics module VMPA14-MPM-EMM-4
This Festo industrial component, part number 8066768, accommodates a maximum of 4 valve positions and 4 solenoid coils housed in a POM body weighing 30 g. Each solenoid coil draws a nominal pick-up current of 80 mA up to 25 ms, transitioning to a reduced nominal current of 25 mA after 25 ms. The assembly features a corrosion resistance class of CRC 1 for low corrosion stress when installed and maintains VDMA24364-B1/B2-L LABS conformity with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066768
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066768.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 4
- Max. no. of solenoid coils
- 4
- Nominal pick-up current per solenoid coil
- 80 mA up to 25 ms
- Nominal current with current reduction
- 25 mA after 25 ms
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | (installed)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 30 g
- Housing material
- POM
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066768. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
