Festo
8066778

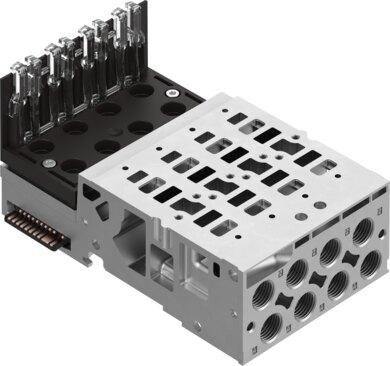

Sub-base VMPA14-AP-4-1-EMS-8
This Festo industrial component, part number 8066778, features a die-cast aluminum sub-base with dimensions of 65.5 mm in width, 107.3 mm in length, and a width dimension of 14.8 mm, weighing 252 g. It accommodates a maximum of 4 valve positions, operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and requires a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) alongside G1/8 pneumatic connections 2 and 4. Built with RoHS compliant materials conforming to VDMA24364-B1/B2-L LABS conformity and a corrosion resistance class (CRC) of 0 for no corrosion stress, it functions in ambient temperatures from -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066778
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066778.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 65.5 mm
- Length
- 107.3 mm
- Width dimension
- 14.8 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 252 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066778. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
