Festo
8066779

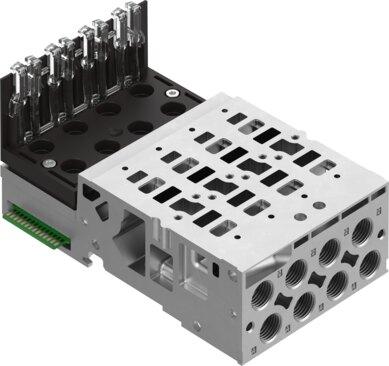

Sub-base VMPA14-AP-4-1-EMM-4
This Festo industrial component, part number 8066779, features a die-cast aluminum sub-base with a width of 65.5 mm, a length of 107.3 mm, a width dimension of 14.8 mm, and a product weight of 252 g. It supports a maximum of 4 valve positions, operating pressures ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and pilot pressures from 0.3 MPa to 0.8 MPa (3 bar to 8 bar). Equipped with G1/8 pneumatic connections 2 and 4, the unit complies with RoHS material standards and VDMA24364-B1/B2-L LABS conformity while offering a corrosion resistance class of CRC 0 for environments with no corrosion stress within an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8066779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8066779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 65.5 mm
- Length
- 107.3 mm
- Width dimension
- 14.8 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 252 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8066779. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
