Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

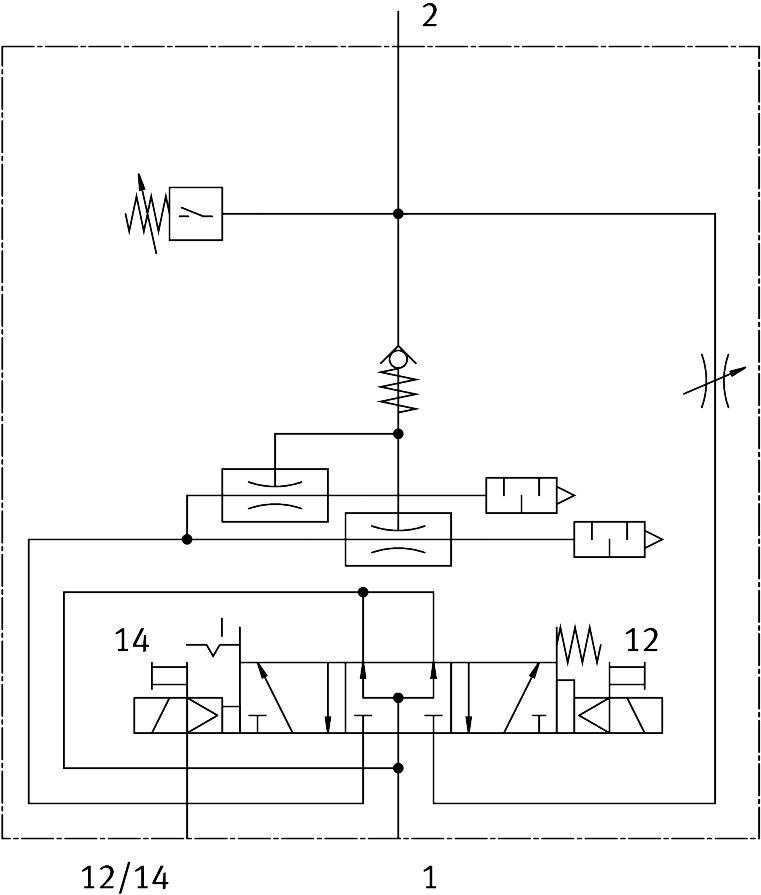

Reference imageConfirm configuration by manufacturer part number.
Festo
8067140
Vacuum generator VABF-S4-2-V2B1-G38-CB-VH-20-A
The Festo part number 8067140 is an industrial component featuring a 35 mm width, a 2 mm nominal width of the Laval nozzle, and an open muffler construction type. This electrical actuation device includes reverse polarity protection for all electrical connections, supports any mounting position, and delivers high vacuum and standard ejector characteristics with detenting, non-detenting, and covered manual override options. Integrated functions comprise an electric ejector pulse, flow control valve, electric on-off valve, electric air-saving function, check valve, open muffler, and a vacuum switch utilizing piezoresistive measuring principles for relative pressure alongside a 5/3-way pressurized valve function and a 2-digit LED indicator displaying kPa units. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8067140
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8067140.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 35 mm
- Nominal width of Laval nozzle
- 2 mm
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- for all electrical connections
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Manual override
- Detenting | Non-detenting | Covered
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching function
- Window comparator | Threshold value comparator
- Integrated function
- Ejector pulse, electric | Flow control valve | Electric on-off valve | Electric air-saving function | Check valve | Muffler open | Vacuum switch
- Valve function
- 5/3-way, pressurized
- Display type
- LED | LED indicator | 2-digit
- Displayable unit(s)
- KPa
- Setting range threshold value
- 0 kPa...99 kPa
- Setting range hysteresis
- 0 kPa...90 kPa
- Setting options
- Teach-in | Via parameter sets
- Signal status display
- LED
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8067140. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
