Festo
8067144

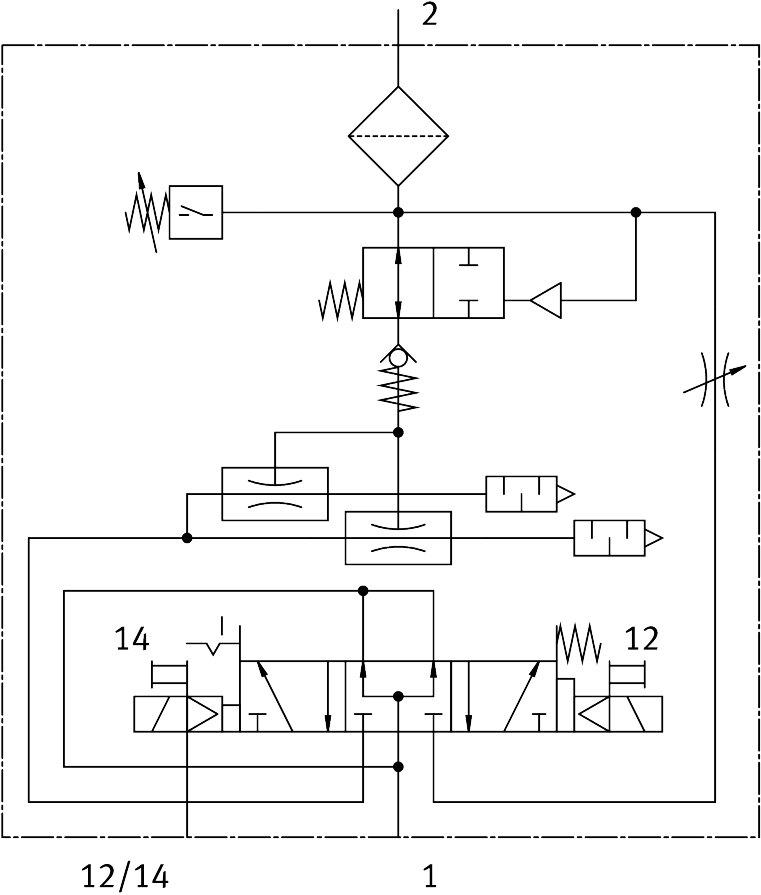

Vacuum generator VABF-S4-2-V2B1-G38-CB-VL-20-AP
The Festo 8067144 is an electrical industrial component measuring 35 mm in width featuring a 2 mm nominal width Laval nozzle and an open muffler construction type. It integrates a flow control valve, electric on-off valve, electric air-saving function, electric power ejector pulse valve, check valve, open muffler, and vacuum switch with a piezoresistive measuring principle for relative pressure, a 5/3-way pressurized valve function, and high suction flow standard ejector characteristics. Featuring reverse polarity protection for all electrical connections, any mounting position, detenting, non-detenting, and covered manual overrides, and a 2-digit LED and LED indicator display in kPa with a 0 kPa to 99 kPa threshold value setting range, it offers window and threshold value comparator switching functions configurable via teach-in or parameter sets with LED signal status displays. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8067144
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8067144.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 35 mm
- Nominal width of Laval nozzle
- 2 mm
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- for all electrical connections
- Mounting position
- Any
- Ejector characteristics
- High suction ow | Standard
- Manual override
- Detenting | Non-detenting | Covered
- Measured variable
- Relative pressure
- Measuring principle
- Piezoresistive
- Switching function
- Window comparator | Threshold value comparator
- Integrated function
- Flow control valve | Electric on-off valve | Electric air-saving function | Power ejector pulse valve, electric | Check valve | Muffler open | Vacuum switch
- Valve function
- 5/3-way, pressurized
- Display type
- LED | LED indicator | 2-digit
- Displayable unit(s)
- KPa
- Setting range threshold value
- 0 kPa...99 kPa
- Setting range hysteresis
- 0 kPa...90 kPa
- Setting options
- Teach-in | Via parameter sets
- Signal status display
- LED
