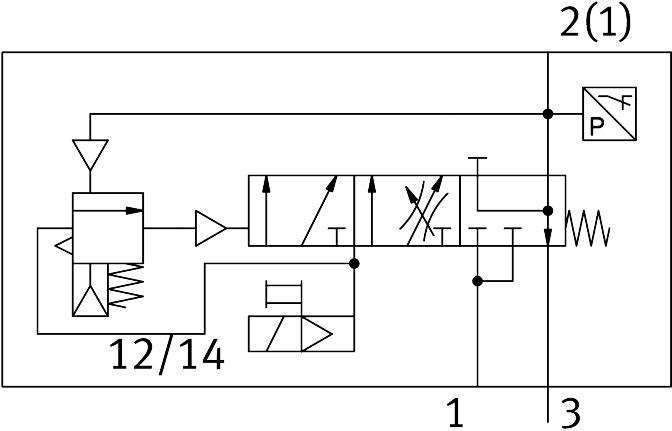

Reference imageConfirm configuration by manufacturer part number.
Festo
8067405
Soft-start valve VABF-S6-1-P5A4S2YE-G12-1T5-PA
The Festo 40 mm industrial component (Part Number 8067405) is an electrically actuated piston gate valve featuring a soft sealing principle, piloted control with an internal pilot air supply port, and non-reversible flow direction. This unit provides pressurization and exhaust valve functions with a negative overlap lap, NC contact switching element function, and mechanical spring reset method, complemented by detenting and self-resetting manual override via electrical control signal. It accommodates any mounting position and withstands vibration and shock according to transport application severity level 2 (FN 942017-4, EN 60068-2-6) and severity level 2 (FN 942017-5, EN 60068-2-27), while supporting a max positive test pulse with 0 signal of 2000 µs and a max negative test pulse on 1 signal of 1200 µs across its 41 mm width dimension and 155 mm length. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8067405
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8067405.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 1200 µs
- Width
- 40 mm
- Length
- 155 mm
- Width dimension
- 41 mm
- Valve size
- 40 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Self-resetting via electrical control signal
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- Pressurization | Exhaust
- Switching element function
- NC contact
- Lap
- Negative overlap
- Additional functions
- Holding current reduction
- Note on forced dynamization
- Switching frequency at least once a month
- Signal status display
- Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
- Switching position sensing
- Via pressure switch, exhausted status
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Pilot pressure MPa
- 0.2 MPa...1 MPa
- Pilot pressure
- 2 bar...10 bar
- Changeover pressure
- Not adjustable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8067405. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
