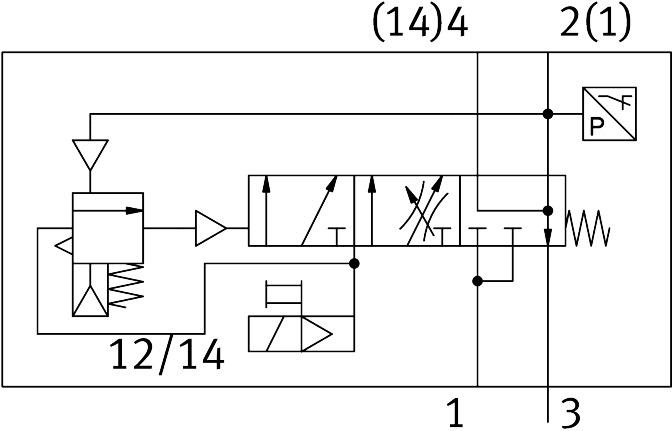

Reference imageConfirm configuration by manufacturer part number.
Festo
8067407
Soft-start valve VABF-S6-1-P5A4S1YE-G12-1T5-PA
The Festo 8067407 is an electrical piston gate valve featuring a 40 mm valve size, 41 mm width dimension, 40 mm width, and 155 mm length with a soft sealing principle and negative overlap lap. This piloted component utilizes internal pilot air supply, mechanical spring reset, non-reversible flow direction, and supports pressurization and exhaust valve functions with NC contact switching element function, manual override via detenting or self-resetting electrical control signal, and any mounting position. It withstands vibration per FN 942017-4 and EN 60068-2-6 severity level 2 transport application tests, shock per FN 942017-5 and EN 60068-2-27 severity level 2 tests, a maximum positive test pulse with 0 signal of 2000 µs, and a maximum negative test pulse on 1 signal of 1200 µs. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8067407
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8067407.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 1200 µs
- Width
- 40 mm
- Length
- 155 mm
- Width dimension
- 41 mm
- Valve size
- 40 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Self-resetting via electrical control signal
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- Pressurization | Exhaust
- Switching element function
- NC contact
- Lap
- Negative overlap
- Additional functions
- Holding current reduction
- Note on forced dynamization
- Switching frequency at least once a month
- Signal status display
- Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
- Switching position sensing
- Via pressure switch, exhausted status
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Changeover pressure
- Not adjustable
