8068637

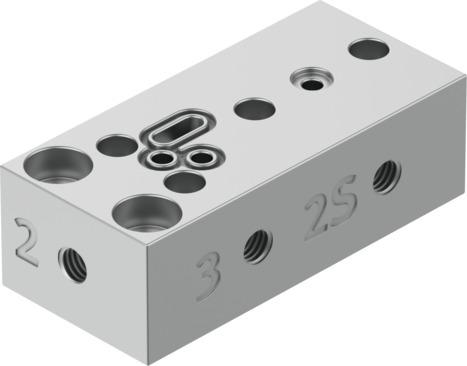

Name: Festo 8068637 Sub-base VABS-P12-S-M5-P3
Brand: Festo

Sub-base VABS-P12-S-M5-P3

The Festo part number 8068637 is an industrial component with a width of 25 mm and a weight of 55 g, featuring through-hole mounting for any position. It supports an operating pressure range of 0 bar to 1.7 bar, a standard nominal flow rate of 27 l/min, and a standard nominal flow rate 2-3 of 28 l/min via an M5 pneumatic connection 1. Certified as oxygen-compatible per DIN EN 1797, it operates with compressed air as per ISO 8573-1:2010 [5:3:1], inert gas, or oxygen, while precluding oil lubrication and requiring a maximum particle size of 5 µm. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8068637
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8068637.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 25 mm
Mounting position: Any
Special features: Oxygen-compatible as per DIN EN 1797
Max. no. of valve positions: 1
Operating pressure: 0 bar...1.7 bar
Standard nominal ow rate: 27 l/min
Standard nominal ow rate 2-3: 28 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [5:3:1] | Inert gas | Oxygen
Information on operating and pilot media: Operation with oil lubrication not possible | Maximum particle size 5 µm
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...70 °C
Temperature of medium: -20 °C...60 °C
Relative air humidity: 0 - 70 % | Non-condensing
Degree of protection: IP00
Note on degree of protection: In mounted state
Ambient temperature: -20 °C...70 °C
Product weight: 55 g
Type of mounting: With through-hole
Pneumatic connection 1: M5
Pneumatic connection 2: M5
Pneumatic connection 2S: M5
Pneumatic connection 3: M5
Pneumatic connection 5: M5
Note on materials: RoHS-compliant
Material of sub-base: Wrought aluminum alloy, anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8068637. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
