Festo
8068738

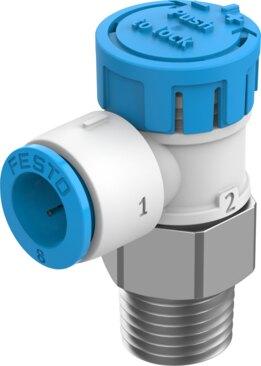

One-way flow control valve VFOE-LE-T-R14-Q8
The Festo industrial component, part number 8068738, is an exhaust air flow control non-return valve featuring a QS-8 pneumatic connection 1 and an R1/4 pneumatic connection 2. Actuated manually via a rotary knob with a latch, this screw-in PBT housing unit supports an operating pressure range of 0.02 MPa to 1 MPa (0.2 bar to 10 bar) and functions within an ambient temperature of -10 °C to 60 °C. It delivers a standard nominal flow rate of 500 l/min in the flow control direction and 370 l/min to 500 l/min in the non-return direction, while carrying ATEX explosion protection certifications for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8068738
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8068738.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- R1/4
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 500 l/min
- Standard nominal ow rate in non-return direction
- 370 l/min...500 l/min
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Width across ats
- 16 mm
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 810 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 750 l/min...900 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8068738. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
