8068739

Name: Festo 8068739 One-way flow control valve VFOE-LE-T-R14-Q10
Brand: Festo

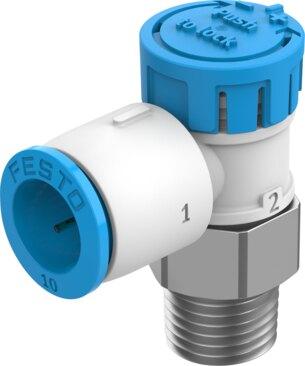

One-way flow control valve VFOE-LE-T-R14-Q10

The Festo 8068739 is an industrial component featuring an exhaust air flow control non-return function with a QS-10 pneumatic connection 1 and an R1/4 pneumatic connection 2. It utilizes manual actuation via a rotary knob with latch, features a PBT housing, and supports screw-in mounting in any position. Operating pressure spans from 0.02 MPa to 1 MPa across an ambient temperature range of -10 °C to 60 °C, while meeting ATEX Zone 1, 2, 21, and 22 explosion protection standards. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8068739
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8068739.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QS-10
Pneumatic connection 2: R1/4
Actuation type: Manual
Adjusting element: Rotary knob with latch
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 500 l/min
Standard nominal ow rate in non-return direction: 370 l/min...500 l/min
Ambient temperature: -10 °C...60 °C
Housing material: PBT
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Width across ats: 16 mm
Rotatability: 360 deg/continuous swiveling not permissible
Operating pressure for entire temperature range: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Standard ow rate in ow control direction 6 -> 0 bar: 810 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 750 l/min...900 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Temperature of medium: -10 °C...60 °C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8068739. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
