Festo
8068744

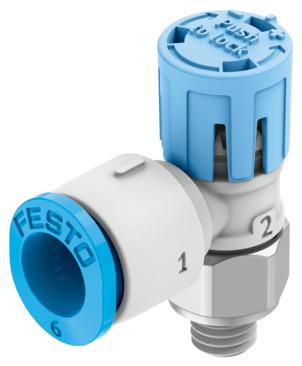

One-way flow control valve VFOE-LS-T-M5-Q6
This Festo industrial component, part number 8068744, features a supply air flow control non-return function with a QS-6 pneumatic connection 1 and an M5 pneumatic connection 2. The unit utilizes manual actuation via a rotary knob with a latch, screw-in mounting, and a PBT housing supporting an operating pressure range of 0.02 MPa to 1 MPa. It delivers a standard nominal flow rate of 100 l/min in the flow control direction and is rated for ATEX Zone 1, 2, 21, and 22 hazardous environments. Submit the exact part number, quantity, and application requirements to receive an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8068744
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8068744.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Supply air ow control non-return function
- Pneumatic connection 1
- QS-6
- Pneumatic connection 2
- M5
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 100 l/min
- Standard nominal ow rate in non-return direction
- 60 l/min...100 l/min
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Width across ats
- 9 mm
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 165 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 150 l/min...180 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
