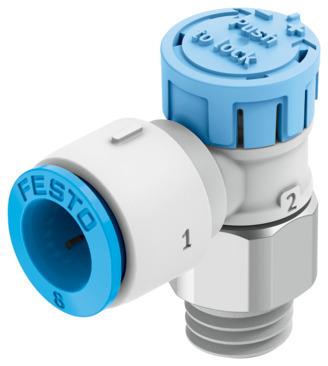

Reference imageConfirm configuration by manufacturer part number.
Festo
8068752
One-way flow control valve VFOE-LS-T-R18-Q8
The Festo part number 8068752 is a supply air flow control non-return valve featuring a QS-8 pneumatic connection 1 and an R1/8 pneumatic connection 2, actuated manually via a rotary knob with latch. Constructed with a PBT housing and a 13 mm width across flats, this component supports screw-in mounting in any position and provides a standard nominal flow rate of 170 l/min in the flow control direction alongside 130 l/min to 200 l/min in the non-return direction. It operates within an ambient temperature range of -10 °C to 60 °C and an operating pressure range of 0.02 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], with ATEX explosion protection compliance for Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8068752
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8068752.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Supply air ow control non-return function
- Pneumatic connection 1
- QS-8
- Pneumatic connection 2
- R1/8
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 170 l/min
- Standard nominal ow rate in non-return direction
- 130 l/min...200 l/min
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Width across ats
- 13 mm
- Rotatability
- 360 deg/continuous swiveling not permissible
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 270 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 320 l/min...390 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8068752. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
