Festo
8068944

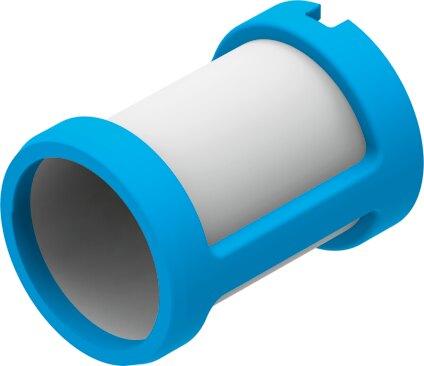

Vacuum filter OAFF-G3-5
The Festo 8068944 is an industrial component featuring a 40 µm filtration grade and a product weight of 1 g, supplied in a pack size of 10. Constructed with a POM housing and a compressed air filter material of fabric and PA, this RoHS-compliant part supports push-fitted or snap-in mounting. It operates within a pressure range of -95 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi) using atmospheric air based on ISO 8573-1:2010 [7:-:-], with an ejector pulse suitability of 0.7 MPa (7 bar, 101.5 psi) and VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8068944
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8068944.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Grade of ltration
- 40 µm
- Pack size
- 10
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 1 g
- Type of mounting
- Push-tted | Snap-in
- Note on materials
- RoHS compliant
- Compressed air lter material
- Fabric | PA
- Housing material
- POM
- Ejector pulse suitability
- 0.7 MPa | 7 bar | 101.5 psi
