8069213

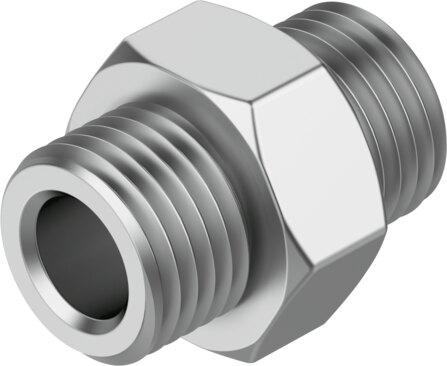

Name: Festo 8069213 Double nipple NPFC-D-2G14-M-P100
Brand: Festo

Double nipple NPFC-D-2G14-M-P100

The Festo 8069213 is a nickel-plated brass threaded fitting featuring G1/4 pneumatic connections on both ports. It operates within a pressure range of -0.95 bar to 50 bar and an ambient temperature range of -20 °C to 150 °C using compressed air as per ISO 8573-1:2010 [-:-:-]. This RoHS-compliant component has a product weight of 17.2 g, a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, and is supplied in a pack size of 100. Submit part number 8069213, desired quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8069213
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8069213.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Threaded tting material: Brass, nickel-plated
Pack size: 100
Operating pressure: -0.95 bar...50 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...150 °C
Product weight: 17.2 g
Pneumatic connection 1: G1/4
Pneumatic connection 2: G1/4
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8069213. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
