Festo
8069214

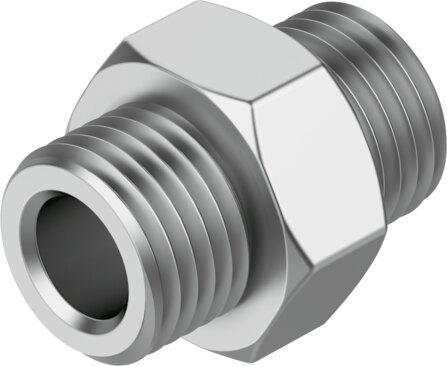

Double nipple NPFC-D-2G38-M-P50
The Festo part number 8069214 is an industrial component featuring nickel-plated brass threaded fittings with G3/8 pneumatic connections on both ends. This unit operates within a pressure range of -0.95 bar to 50 bar and an ambient temperature span of -20 °C to 150 °C using compressed air as per ISO 8573-1:2010 [-:-:-] as the operating medium. Built with a product weight of 24 g, it achieves corrosion resistance class 1 for low corrosion stress, complies with VDMA24364-B1/B2-L LABS conformity, and includes RoHS-compliant materials in a pack size of 50. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069214
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069214.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 50
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 24 g
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Note on materials
- RoHS compliant
