Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

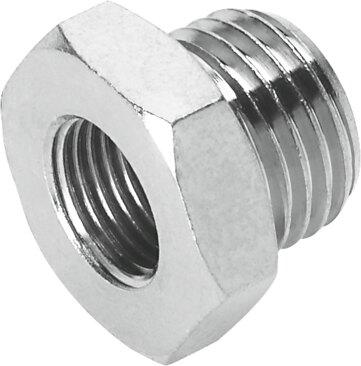

Reference imageConfirm configuration by manufacturer part number.
Festo
8069238
Reducing nipple NPFC-R-G1-G34-MF
This Festo industrial component, part number 8069238, features nickel-plated brass threaded fittings with a G1 pneumatic connection 1 and a G3/4 pneumatic connection 2, supplied in a pack size of 10 with a total product weight of 96.2 g. It operates with compressed air as per ISO 8573-1:2010 [-:-:-] across an operating pressure range of -0.95 bar to 50 bar and an ambient temperature range of -20 °C to 150 °C. The unit exhibits a corrosion resistance class (CRC) of 1 for low corrosion stress, conforms to VDMA24364-B1/B2-L LABS (PWIS) requirements, and incorporates RoHS-compliant materials. Submit exact part number 8069238, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 96.2 g
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- G3/4
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8069238. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
