Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

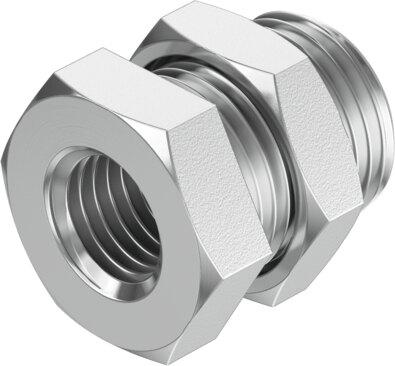

Reference imageConfirm configuration by manufacturer part number.
Festo
8069240
Bulkhead fitting NPFC-H-G18-F
The Festo 8069240 is an industrial component comprising nickel-plated brass threaded fittings packaged in a quantity of 10, featuring G1/8 pneumatic connections for both port 1 and port 2. This part operates with compressed air as per ISO 8573-1:2010 [-:-:-] across an operating pressure range of -0.95 bar to 50 bar and an ambient temperature range of -20 °C to 150 °C. Built with a product weight of 30 g, a corrosion resistance class (CRC) of 1 for low corrosion stress, and VDMA24364-B1/B2-L LABS conformity, the RoHS-compliant assembly meets specified material standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069240
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069240.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Threaded tting material
- Brass, nickel-plated
- Pack size
- 10
- Operating pressure
- -0.95 bar...50 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 30 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8069240. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
